International Airport of Shiraz

CategoryAcademic work · Islamic Azad University, ShirazYear2012–2013LocationShiraz, IranSupervisorM. Hossein JafarpourExecutionIndividual

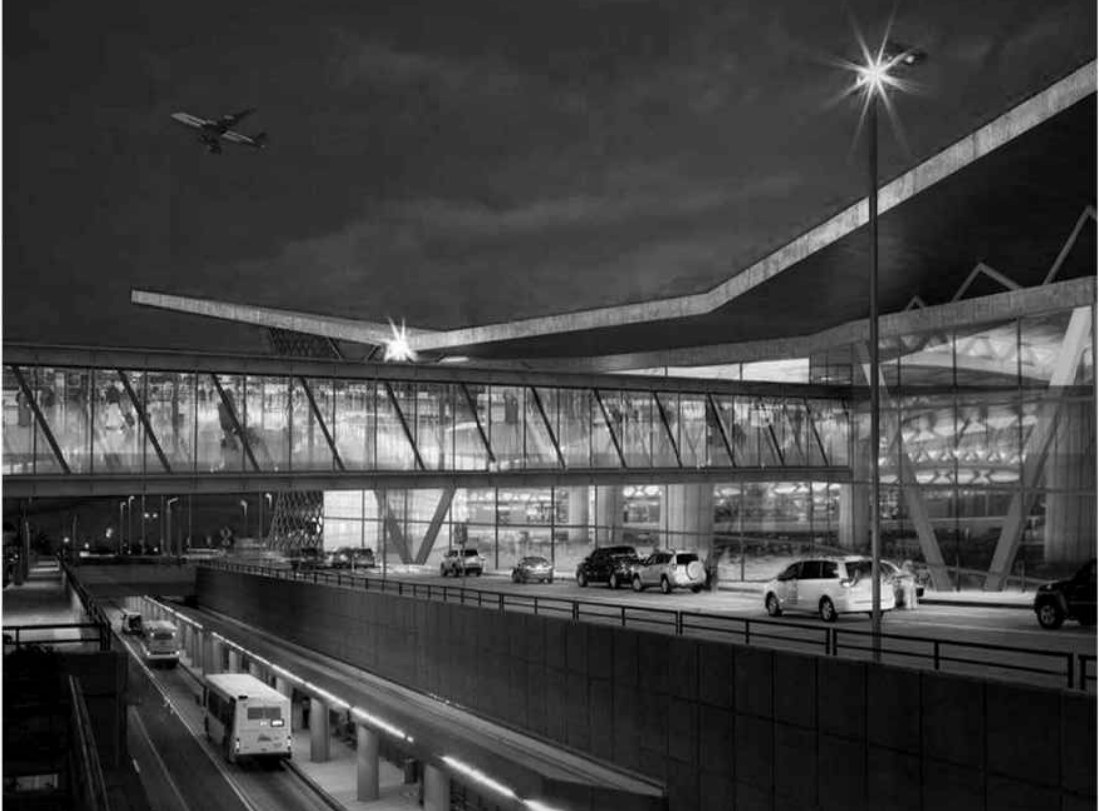

Drop-off and departures bridge at night
Drop-off and departures bridge at night

Shiraz International Airport is designed to redefine the internal relations of the airport so that two independent spaces exist for incoming and outgoing passengers, with the drive-through services in between. After check-in, departing passengers reach their gate halls through an air bridge on the riding route — the connecting line between the exit and entrance halls — while arriving passengers leave through a separate space.

On a larger scale the airport is like a migrating bird sitting on the shore of Maharloo Salt Lake: its configuration and form are inspired by migratory birds, and the roof takes the shape of a bird's beak in flight. The 1.5 m space structure sits on tree-shaped columns that also house the hot and cold installations; the linear form allows four gate halls.

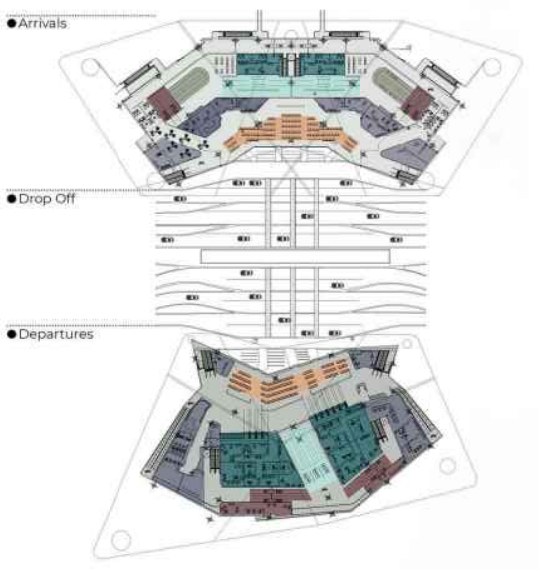

Arrivals · drop-off · departures
Arrivals · drop-off · departures

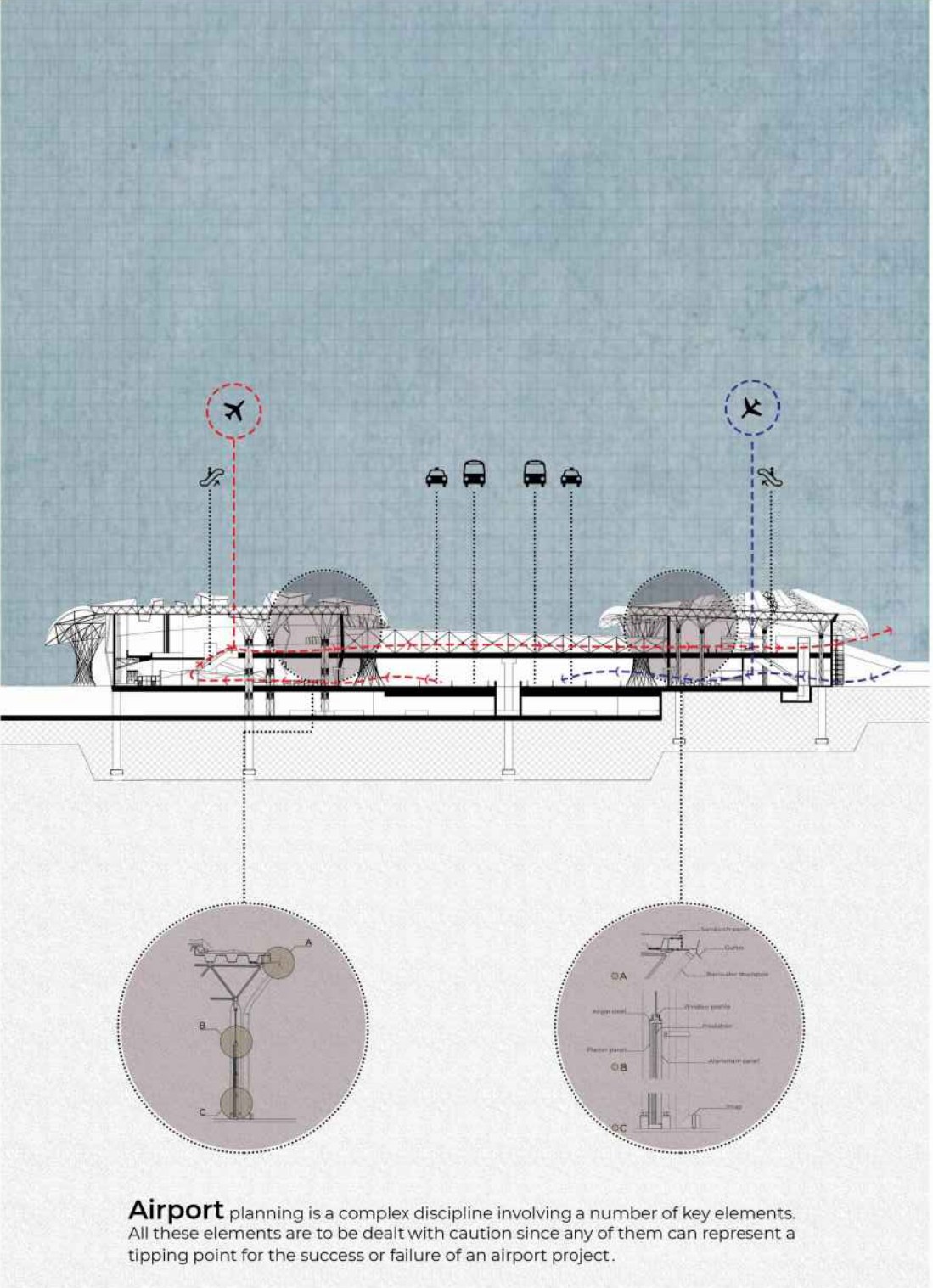

Section and column details
Section and column details

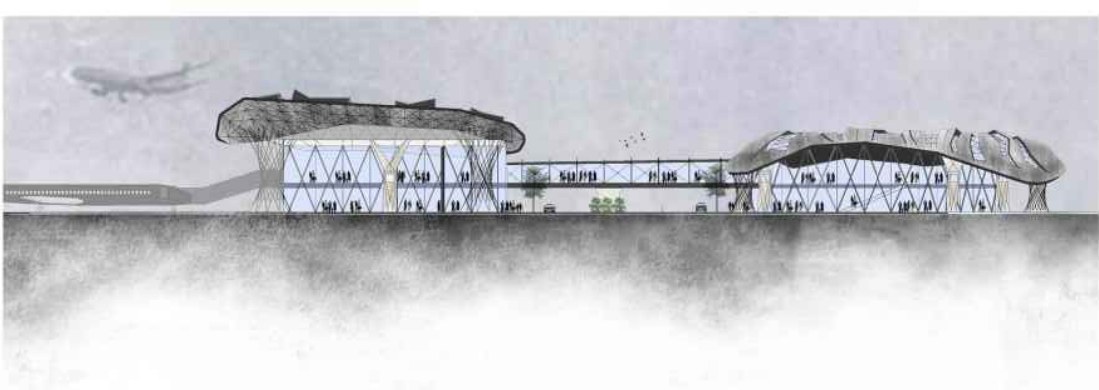

Elevation
Elevation

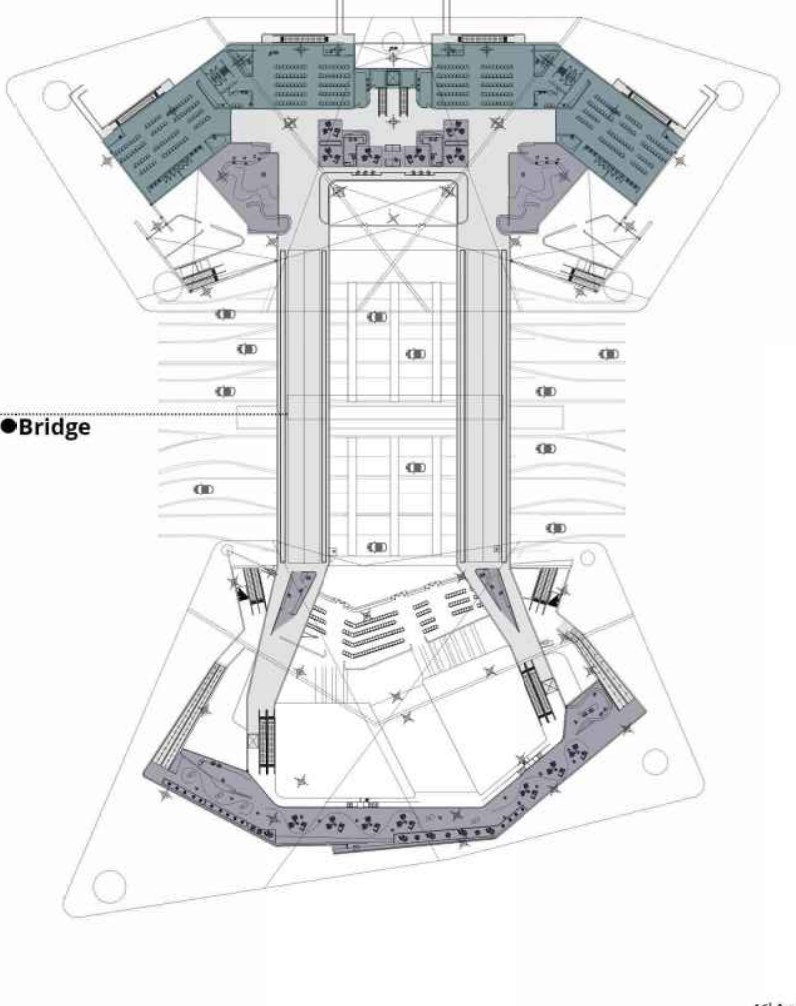

Plan with the bridge
Plan with the bridge

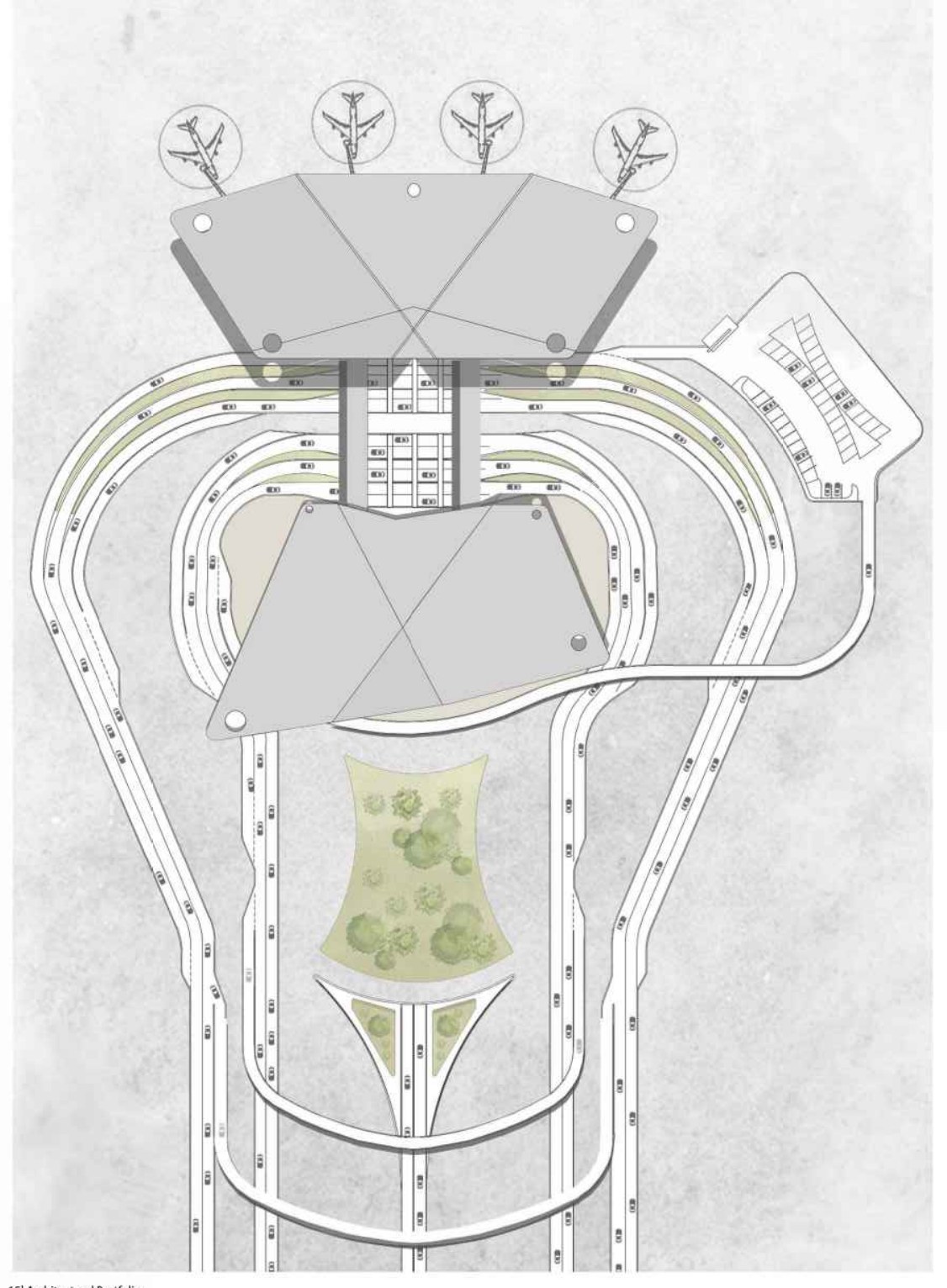

Site plan on the lake shore
Site plan on the lake shore
